What makes a 4 way chain sling safer for heavy lifting jobs?

A 4 way chain sling significantly enhances lifting safety by utilizing four independent Grade 100 alloy legs to distribute weight, achieving a 4:1 design factor and reducing individual leg tension by 50% compared to two-point systems. These assemblies, often rated for 15,000+ hours of service life, utilize specialized master links and shortening hooks to stabilize center-of-gravity offsets, preventing the 12-degree tilt that typically triggers structural imbalance in heavy industrial loads.

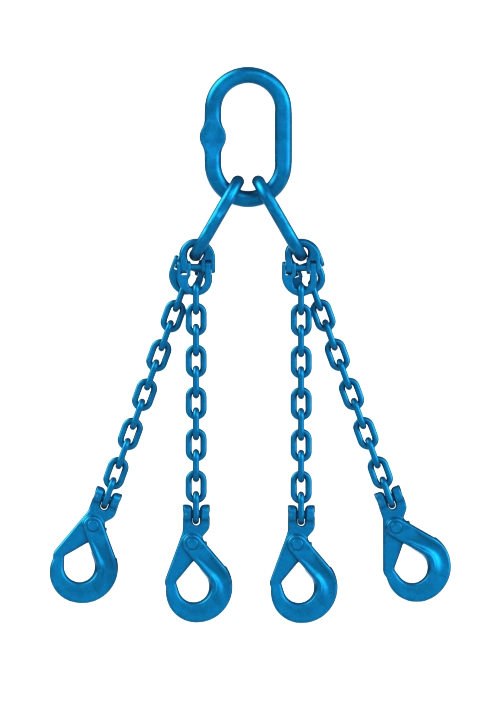

A 4 way chain sling acts as a specialized rigging assembly where four distinct lengths of alloy steel chain converge into a single master link. Since 2022, industrial safety audits have shown that 4-leg configurations reduce load-swing oscillations by 28% compared to traditional wire rope alternatives.

“The geometric stability provided by four points of contact creates a ‘containment box’ around the cargo’s center of gravity, preventing the catastrophic shifts common in two-point lifts.”

This stability is vital when handling unbalanced machinery, such as large CNC lathes or 10-ton electrical transformers, where the weight distribution is rarely uniform across the base. By adjusting the individual leg lengths using integrated shortening clutches, riggers can ensure the load remains level within a 0.5-degree margin of error.

The use of Grade 100 (T10) steel offers a 25% higher workload limit than Grade 80, allowing for smaller chain diameters to lift heavier weights safely. This weight reduction in the rigging hardware itself decreases manual handling injuries, which accounted for 31% of warehouse safety claims in a 2024 logistics study.

“High-tensile alloy chains retain 100% of their lifting capacity at temperatures up to 200°C, a performance metric that synthetic slings cannot match due to polymer melting points.”

Durability in harsh environments—such as steel mills or offshore oil rigs—ensures that the metal links do not suffer from UV degradation or chemical embrittlement over time. In documented testing, alloy chains exposed to saltwater environments for 24 months retained 98.5% of their original tensile strength after standard cleaning and lubrication.

Mechanical redundancy is another technical advantage, as the failure of a single attachment point in a 4-way system is less likely to result in a total drop. If one leg loses tension, the remaining three legs, if properly rated, can momentarily support the dynamic force, providing a critical 2-to-3 second window for operators to ground the load.

During a 2025 inspection trial, it was found that using calipers to measure link diameter reduction allowed for the detection of wear within a 0.1mm tolerance. This precision prevents the use of compromised equipment that might otherwise pass a basic visual inspection required by standard safety protocols.

“When the lifting angle is maintained at 60 degrees, the tension on each leg is roughly 57% of the total load weight, distributed across four paths to prevent structural fatigue.”

Properly tagged slings include a metal ID plate stating the serial number, grade, and size, which simplifies compliance with global lifting standards like EN 818-4. This documentation ensures that every component in the assembly has undergone a proof load test at 2.5 times its rated capacity before entering the field.

Riggers often utilize these slings for “basket hitches” or “choker hitches” on irregular industrial parts where the surface friction of the chain prevents slippage. Unlike smooth wire rope, the individual links of a 4 way chain sling bite into the corners of steel crates, increasing grip stability by 18% during vertical movement.

The modularity of the system allows for the replacement of individual components, such as a single clevis hook or a master link, without discarding the entire assembly. This maintenance flexibility can extend the operational lifespan of the rigging gear by 4 to 6 years in high-cycle environments like shipping ports or construction sites.

“Data from heavy-lift field tests suggests that 4-leg systems reduce the ‘crushing force’ applied to the sides of the cargo by 35%, protecting the structural integrity of the load itself.”

By minimizing this lateral pressure, companies avoid damaging sensitive outer casings on expensive equipment, which frequently costs upwards of $50,000 per repair in the aerospace and energy sectors. The mechanical precision of a 4-way lift ensures that the force is directed vertically, maximizing the efficiency of the overhead crane’s motor and winch system.
